The Evaluation Shell (Zorro S)

The strategy evaluation shell is an addendum to the Zorro project. Its purpose is determining the ideal parameters and functions for a given trading strategy, generating a portfolio of asset, algo, and timeframe combinations, and predicting its live perfomance under different market situations. The Zorro evaluation shell can make the best of a strategy, especially of 'indicator soup' type strategies that combine many different indicators and analysis functions.

A robust trading strategy has to meet several criteria:

• It must exploit a real and significant market inefficiency. Random-walk markets cannot be algo traded.
• It must work in all market situations. A trend follower must survive a mean reverting regime.
• It must work under many different optimization settings and parameter ranges.
• It must be unaffected by random events and price fluctuations.

The shell evaluates parameter combinations by these criteria. The robustness under different market situations is determined through the R2 coefficient, the parameter range robustness with a WFO profile (aka Cluster Analysis), the price fluctuation robustness with oversampling. A Montecarlo analysis finds out whether the strategy is based on a real market inefficiency.

Zorro already offers functions for all these tests, but they require a large part of code in the strategy, more than for the algorithm itself. The evaluation shell skips the coding part. It can be simply attached to a strategy script. It makes all strategy variables accessible in a panel, adds optimization and money management as well as support for multiple assets and algos, runs automated analysis processes, and builds the optimal portfolio of strategy variants. It compiles unmodified under lite-C and under C++, and supports .c as well as .cpp scripts.

With almost 1500 lines, the shell is probably the largest Zorro script so far, and goes far beyond other strategy evaluation software on the market. It comes with source code, so it can be easily modified and adapted to special needs. It is restricted to personal use; any commercial use or redistribution, also partially, requires explicit permission by oP group Germany. Since it creates a panel and a menu, it needs a Zorro S license to run. Theoretically you could remove the panel and menu functions and use the shell with the free Zorro version. This is allowed by the license, but would require clumsy workarounds, like calling functions by script and manually editing CSV files.

Overview

Developing a successful strategy is a many-step process, described in the Black Book and briefly in an article series on Financial Hacker. The evaluation shell cannot replace research and model selection. But it takes over when a first, raw version of the strategy is ready. At that stage you're usually experimenting with different functions for market detection and generating trading signals. It is difficult to find out which indicator or filter works best, since they are usually interdependent. Market detector A may work best with asset B and lowpass filter C on time frame D, but this may be the other way around with asset E. It is very time consuming to try out all combinations.

The evaluation shell solves that task with a semi-automated process.

Creeate  Jobs

Generate  Summary

Cluster  Analysis

Correlation  Analysis

Montecarlo  Analysis

Final  Portfolio

The first step is saving several sets of different parameter settings, named jobs. Any job is a variant of the strategy that you want to test and possibly include in the final portfolio. You can have parameters that select betwen different market detection algorithms, and others that select between different lowpass filters. The parameters are edited in the variables panel, then saved with a mouse click as a job. Since a job is just a CSV file with parameter values and ranges, you can also edit or create them directly with a spreadsheet program or a text editor.

The next step is an automated process that runs through all jobs, trains and tests any of them with any asset, algo, and timeframe used by the strategy, and stores their results in a summary. The summary is a CSV list of all jobs with their main performance metrics. It is sorted by performance, so the best performing jobs are at the top. So you can see at a glance which parameter combinations work with which assets and time frames, and which are not worth to examine further. You can repeat this step with different global settings, such as bar period or optimization method, and generate multiple summaries in this way.

The next step in the process is cluster analysis. Every profitable job in a selected summary is automacially optimized multiple times with different WFO settings. These settings are taken from - you guessed it - a separate CSV file that may contain a regular WFO matrix, a list of irregular cycles/datasplit combinations, or both. For reducing the process time, only jobs with rising equity curves - determined by a sufficient R2 coefficent - get a cluster analysis. You can also further exclude jobs by removing or outcommenting them in the summary.

After this process, you likely ended up with a couple survivors in the top of the summary. The surviving jobs have all a positive return, a steady rising equity curve, shallow drawdowns, and robust parameter ranges since they passed the cluster analysis. You can now create a set of algos from the top of the summary with a mouse click, and train them for optimal performance.

However, some of these algos might not be suited for the final portfolio. The purpose of a job portfolio is diversification, but this would not work when jobs are strongly correlated and have their drawdowns all at the same time. You want a balanced portfolio with uncorrelated algorithms. For this, run an algo comparison. It will display a chart with the equity curves from any job. Check the curves and throw out variants with bad drawdowns, with high volatility, or with too-similar curves. After removing or out-commenting them from the summary, create an algo set again for the final balanced portfolio.

You're not finished yet. Any selection process generates selection bias. Your perfect portfolio will likely produce a great backtest, but will it perform equally well in live trading? To find out, run a Montecarlo analysis. This is the most important test of all, since it can determine whether your strategy exploits a real market inefficiency. If the Montecarlo analysis fails with the final portfolio, it will likely also fail with any other parameter combination, so you need to run it only at the end. If your system passes Montecarlo with a p-value below 5%, you can be relatively confident that the system will return good and steady profit in live trading. Otherwise, back to the drawing board.

This manual is split in two parts. The following sections deal with the user interface of the shell. For a quick usage example, scroll down to the end. Attaching the shell to an existing strategy is described in the tutorial.

Variables panel

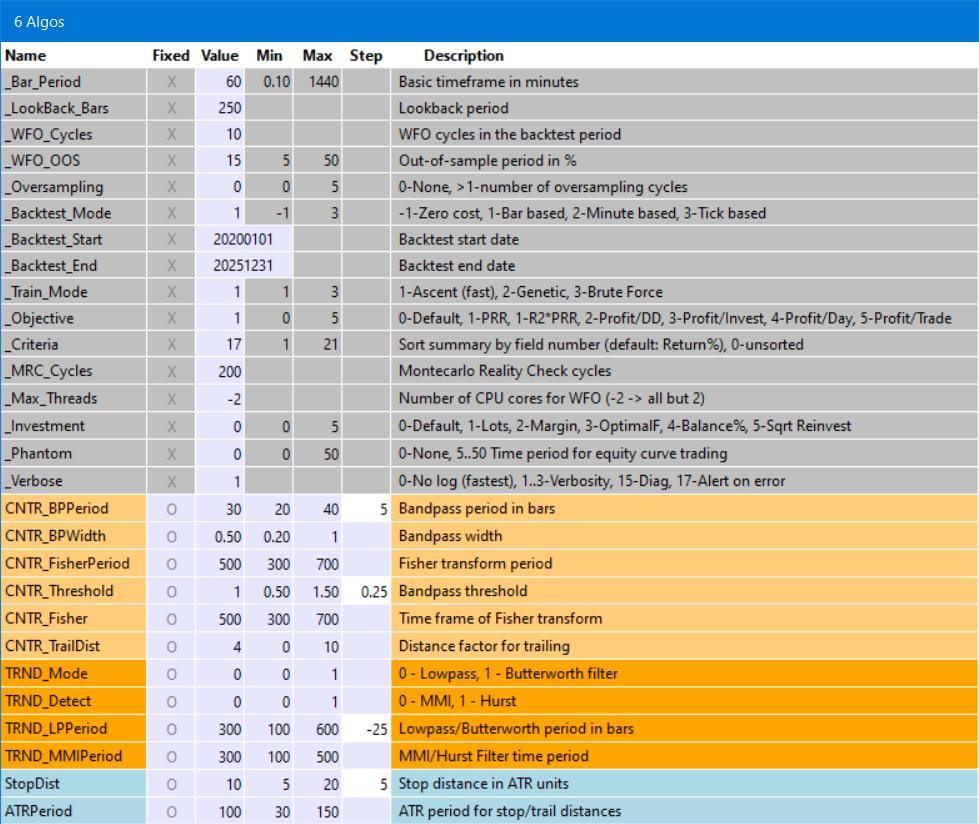

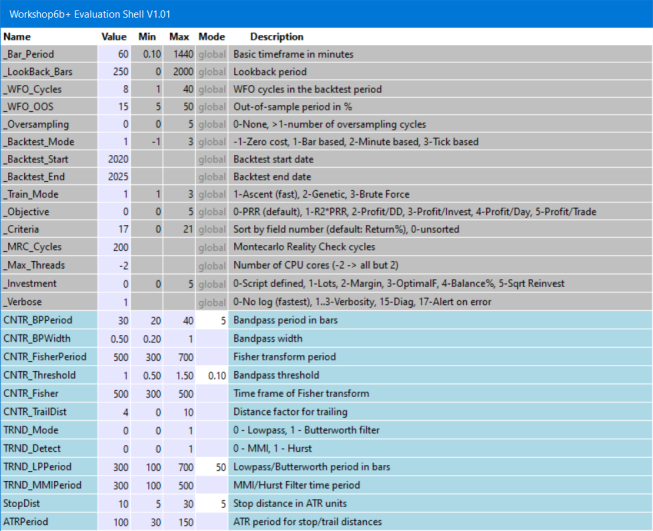

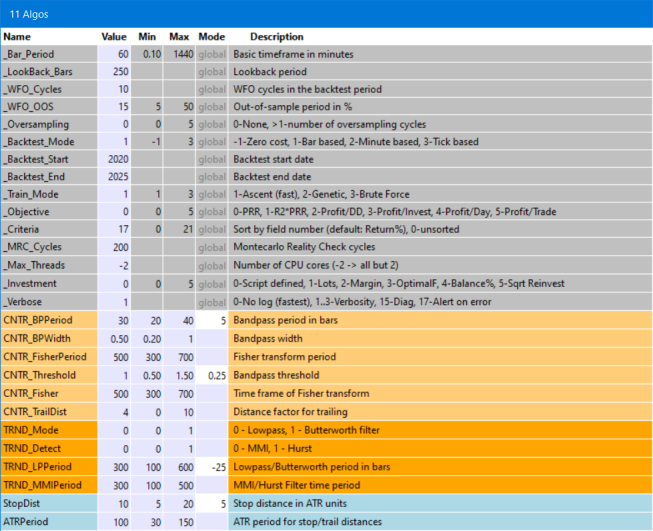

When you start a strategy with attached shell, the [Result] button will change to [Start], a new menu will be available under [Action], and a panel with the current parameter and variables of the strategy will pop up:

The panel and menu are the reason why a Zorro S license is required, since panel functions are not supported by the free version. The variables in the panel are divided in three sections.The general system settings, common for all strategies, are in the grey area. The strategy variables specific to a certain algorithm are in the area with red or yellow colors, where any algorithm has its individual color. The strategy variables common to all algorithms are in the blue area.

Every variable is represented by a row in the panel. The first field is thje variable name. The Fixed field can be active (x) or disabled (o). It can be switched between the states with a mouse click. If a variable value is fixed, it overrides the value from a saved job or from optimization. By default, the system variables are fixed, the strategy specific variables are not.

The Value, Min, and Max fields contain the default value and range (if any) of the variable. You can edit any field and change its value. Edited values in the panel are remembered at the next start. Changes are indicated with a white background. Exceeding the valid range is allowed, but indicated with a red background.

The Step field is for variables that can be optimized. A negative step width establishes a percent increase, as recommended with large optimization ranges. If the step width is set to 0, the variable is not optimized, and gets its default value instead..

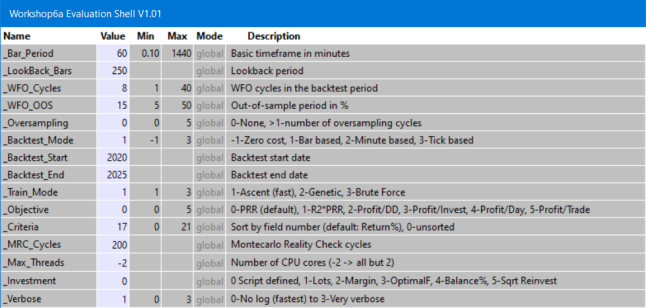

The system settings in the grey area are mostly self explaining:

Action menu

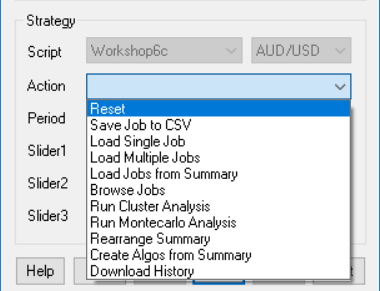

After starting the script in [Train] mode, a click on [Action] opens a dropdown menu, like this:

When no job was loaded, clicking on [Start] will just start a test or training run with the current variable settings in the panel. After a successful backtest, the performance report will open in the editor, and the chart viewer will display the price curve, the trades, and the equity curve. Train mode will always use walk forward optimization, even when none is defined in the script. Test mode will only run a backtest; so the strategy should have been trained before. After changing any variable, train again. If a variable range was exceeded or historical data was missing for the selected backtest period, you'll get an error message. Training errors will store the error message in Log\Errors.txt and abort.

When one or more jobs are loaded, a click on [Start] will train and test all of them in all their asset, algo, and timeframe variants. Their logs, performance reports, and charts will be stored in a subfolders named after the job. In this way training and testing jobs leaves a 'perpertrail' that allows evaluating individual results. Instead of the performace report, a summary report will open in the editor.

Results: Summary

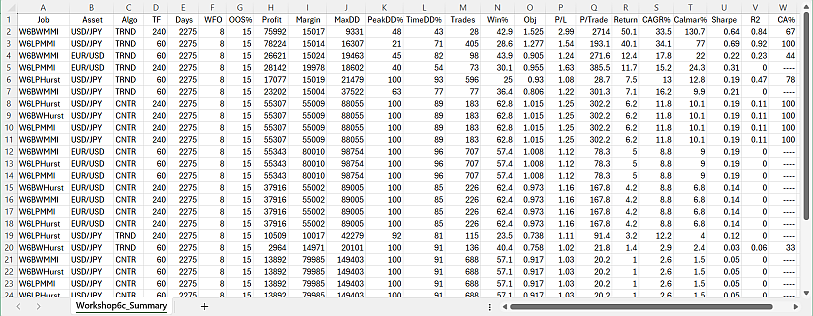

The summary report appears when multiple jobs are trained or tested. Any job in any asset, algo, and timeframe variant generates a record in the summary. The summary is sorted, with the best jobs, selected by the _Criteria variable, at the top. It is stored in CSV format, so it can be further evaluated in a spreadsheet program.

The fields:

If a job uses multiple assets, algos, or timeframes, the last one is recorded in the summary. The meaning of the performance metrics can be read up under performance report.

Results: Paper trail

The test results for any job are automatically stored in subfolders of the folder that contained the job file. The subfolders are named after the job, its asset, its algo, and its timeframe. In this way any job leaves a 'papertrail' of of text, CSV, image, and html files from its training and test runs. All reports can be opened with a plain text editor such as the included Notepad++. The .csv files can also be opened with Excel, and the chart images with an image viewer like the included ZView.

Aside from the summary and the CA or MA charts, the following reports are produced when jobs are processed (for details see exported files):

*.txt - the last performance report.
*history.csv - the performance history of the job. Any test or training run adds a line to the history.
*.png - the chart with the equity curve, trades, and indicators.
*.htm - a page with parameter charts that visually display the effect of parameters on the performance.
*.log - the event log of the backtest.
*train.log - the training log with the objective results for all tested parameter combinations.
*pnl.csv - the equity curve of the backtest, for further evaluation.
*trd.csv - the trade list of the backtest, for further evaluation.
*par.csv - the results of genetic or brute force training runs, for further evaluation.
Log\Errors.txt - the last errors encountered (if any) while training or testing.

Results: Cluster analysis

Cluster analysis (CA) can be performed either with the current settings and algos, or with a selected job and its variants, or with promising jobs loaded from the summary. In the latter cases its results are stored in the CA% field of the summary report. For reducing process time, only jobs with profit factor and R2 value above predefined limits (1.25 and 0.25) will be loaded from the summary. And only jobs with more than 75% positive CA runs will be taken over to the next step, the algorithm selection.

Dependent on the selected cluster template, Cluster analysis will generate either a WFO profile or a heatmap: The cluster template is a CSV file with an arbitrary number of WFO cycle / OOS period combinations, like this:

WFO,OOS%
-4, 25
-3, 22
-2, 20
-1, 18
0, 15
1, 12
2, 9
3, 7
4, 5

WFO profile, from a non-matrix cluster analysis. Y axis: _Criteria, X axis: line number in the template.

Usually, the cluster template will be a regular matrix, like this (for a 5x5 matrix):

WFO,OOS%
-2, 5
-2, 10
-2, 15
-2, 20
-2, 25
-1, 5
-1, 10
-1, 15
-1, 20
-1, 25
0, 5
0, 10
0, 15
0, 20
0, 25
1, 5
1, 10
1, 15
1, 20
1, 25
2, 5
2, 10
2, 15
2, 20
2, 25

WFO heatmap, from cluster analysis with a regular matrix

The color of the fields represents the performance. You want as much red fields in the heatmap as possible. The example above, with the Pessimistic Return Ratio (PRR) as metric, has only 13 red fields out of 25. This job would not pass the 75% CA threshold.


Create portfolio

The goal of evaluation is creating a balanced portfolio from optimal components. Create Algos from Summary will generate a portfolio from all job variants with at least 75% CA and 1.25 profit factor, and store it in "*_algo.bin" in the Data folder. This portfolio is then loaded at start, and further test or training operations are applied to the whole portfolio unless it is reset or something else is selected. The algo/asset/timeframe components are listed at start, like this:

Algo TRND_2 (EUR/USD, 60M)
Algo TRND_5 (USD/JPY, 60M)
Algo CNTR_7 (USD/JPY, 240M)
Algo CNTR_8 (EUR/USD, 240M)
Algo CNTR_9 (USD/JPY, 240M)
Algo CNTR_10 (USD/JPY, 240M)

Results: Algo comparison

After creating and training a portfolio of algos, run an algo comparison in [Test] mode. It produces a chart like this:

You can now identify equity curves that you don't like - there are several in the above example chart - and remove them from the summary, or outcomment them. The numbers in the algo names are the line number in the summary.

Results: Montecarlo analysis

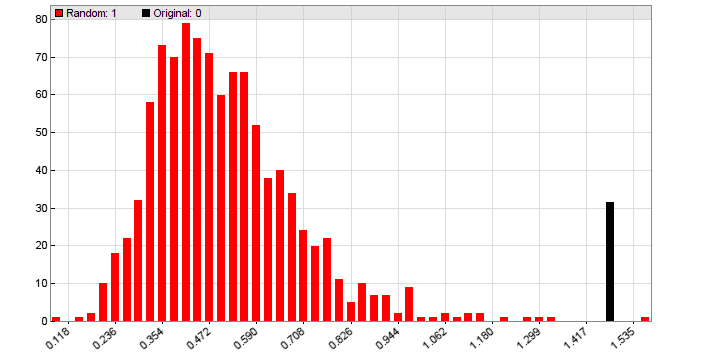

Montecarlo Analysis, aka 'Reality Check', is normally only applied to the final strategy after algos have been generated. It produces a histogram of results from randomized price curves (red) and from the original price curve (black). This one below (from the 'placebo system' in the Financial Hacker article) indicates that you better don't trade that system live, even though it produced a great walk-forward analyis.

Another Montecarlo histogram from a real stragegy that generated less walk-forward performance than the 'placebo system', but a lot more performance in live trading since it exploits a real market inefficiency:

More about cluster analysis and Montecarlo analysis can be found on financial-hacker.com/why-90-of-backtests-fail.


Very concise usage tutorial

• First, create the performance summary. For this select Workshop6c and click [Train].
• From the [Action] scrollbox, select Load Multiple Jobs.
• 4 example jobs beginning with "W6..." are in the Job folder. Double click one of them.
• Click [Start]. All jobs with their asset, algo, timeframe variants are now trained.
• At the end of the process, the Summary will pop up in the editor.

• Next, cluster analysis. Click [Train] and select Load Jobs from Summary.
• Double click on Job\Workshop6c_Summary.csv that was generated in the previous step.
• From the [Action] scrollbox, select Run Cluster Analysis.
• Now you have the choice between several predefined clusters. Select WFO_Cluster3x3.
• After a lengthy process, the summary appears with the CA% column of the best jobs populated,

• Next, portfolio creation. Click [Train] and select Create Algos from Summary.
• Double click on Job\Workshop6c_Summary.csv. You'll see a list of select algo variants that build the final system.
• Click [Start] to train. The perfomance report of the final system will pop up at the end.


• Next, algo comparison. Click [Test]. The portfolio of algos is automatically loaded.
•  Select Run Algo comparison. It will create a chart with the equity curves of all algos.
• Remove jobs with unconvincing equity curves from the summary.
• Create algos again from the remaining jobs in the summary.

• Finally, the Montecarlo Reality Check. Click [Train]. The portfolio of algos is automatically loaded.
• From the [Action] scrollbox, select Run MonteCarlo Analysis.
• At the end of the process you'll get the p-value and a histogram of the final system.

• If according to the p-value the system is not worth trading, come up with a better system.
• Otherwise click [Train]. It must be trained again after the montecarlo process.
• After training, select your broker and account, click [Trade], and get rich.

Naturally, training hundreds of jobs and variants will take its time. For highest speed, activate multiple threads, code in C++, and use the 64 bit Zorro version.


Remarks

• After temporarily changing variable values or ranges in the script, click Reset on the next start, otherwise the variables keep their last stored values and ranges.
• Variables that affect bar creation and training, such as bar period, WFO settings, lookback period, and start/end dates, can onlc be changed for the whole strategy, but not for single jobs.
• If the strategy was changed after creating algos, the whole evaluation process must be repeated if the modification affects multiple jobs in different ways. Otherwise it is sufficient to train the algos again.
• If a new job was added, load, train, and cluster analyze the job with its algo/asset/timeframe variants.
• Make sure that _Lookback_Bars is sufficient for running all loaded jobs with the largest time frame. When extending or reducing the backtest years, adapt _WFO_Cycles accordingly.
• For highest speed, activate multiple threads, code in C++, and use the 64 bit Zorro version.
• If a thread encounters an error, the optimization will stop and the error message can be found in the file Log\Errors.txt.
• Training results are only kept for last training run or for the final portfolio. Test results of any job are permanently kept in the 'paper trail' folders. When you switch jobs or change parameters, always train again.
• Do not open results in Excel while a shell process is running. Excel will block any access to its open files.
